GPIO-Button-10S

SKU: 91570010

Shipping

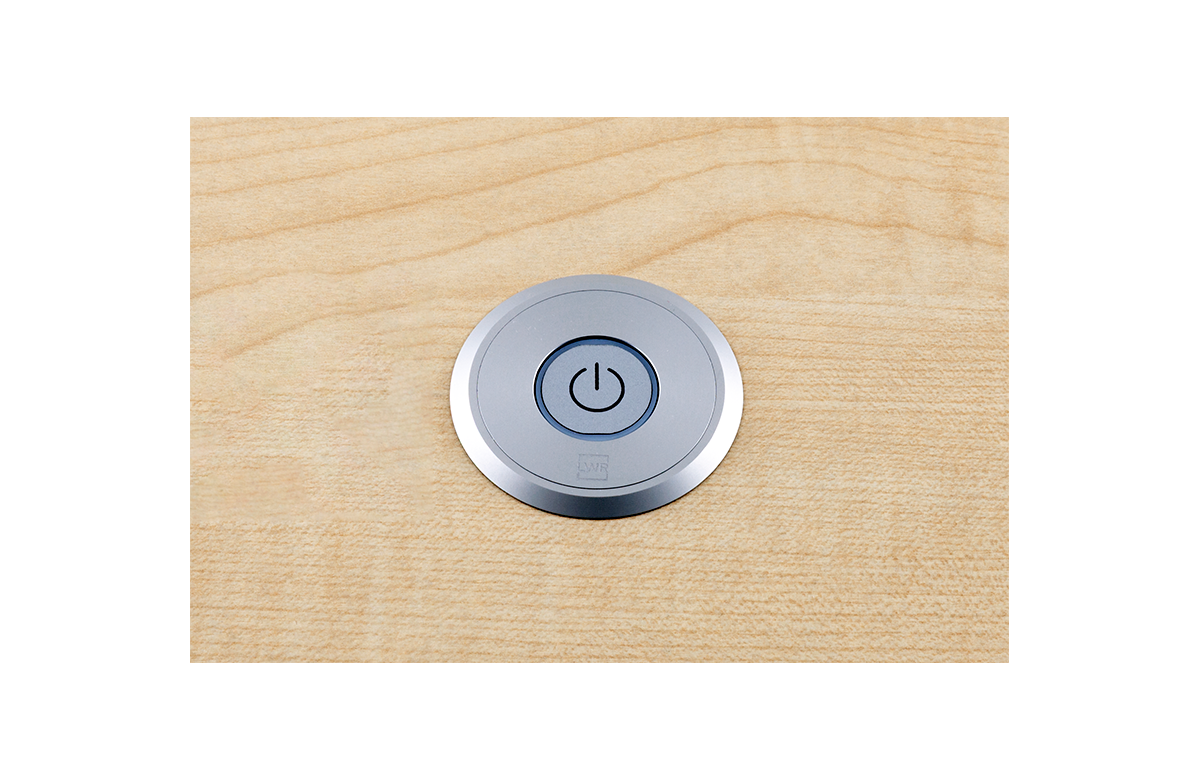

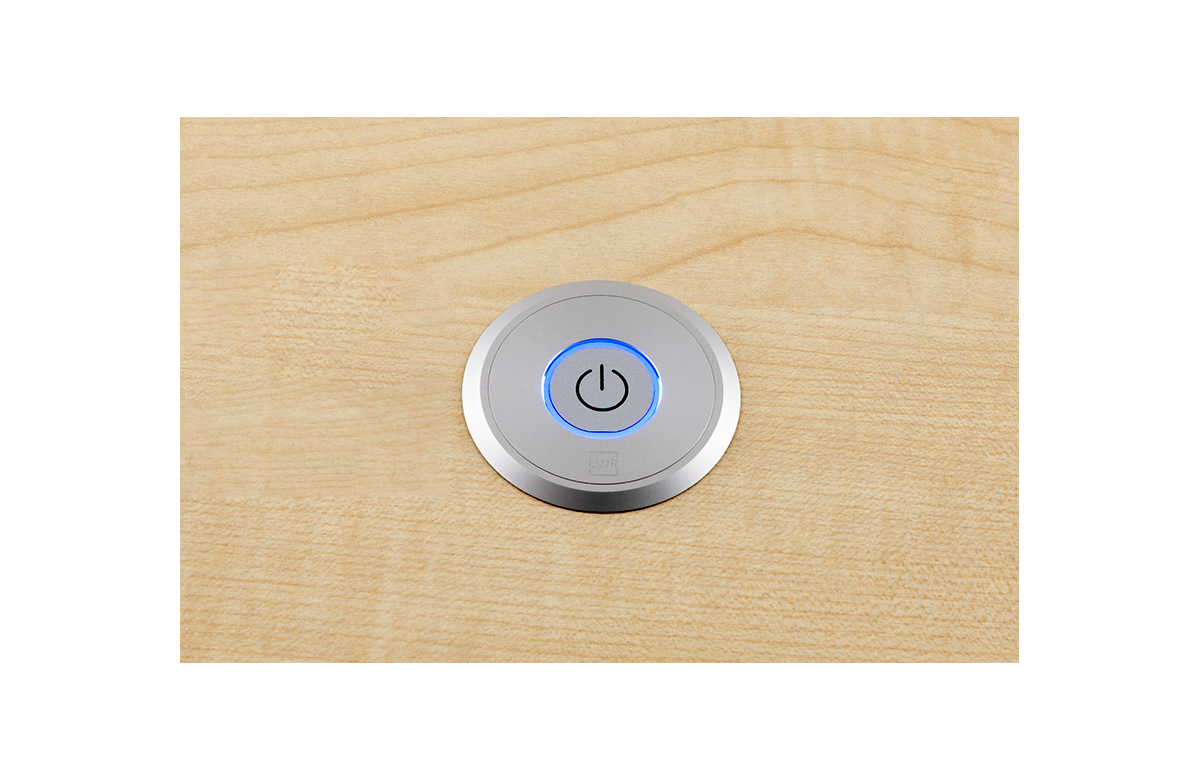

Customizable pushbutton with multicolor LED ring, Silver

Lightware's GPIO button is designed to provide a reliable physical control button with 3-color feedback light. It can be connected to Lightware devices equipped with GPIO ports, to trigger any room control action upon the button press in LARA or Event Manager.

Details

The GPIO-Button-10S is a dedicated GPIO button for Lightware systems, created to enable straightforward “press-to-action” control scenarios in AV and room automation environments. By connecting the button to a compatible Lightware device’s GPIO interface, the button press can be used as an input condition to initiate predefined control actions, supporting easy-to-use local control without requiring a separate complex control processor for basic tasks.

Up to 2 buttons can be connected to a 6-GPIO Lightware device (like the Taurus/MMX2 range), each unit uses 1 GPIO as input for the button press, and 2 GPIOs as output for the feedback LED. Once connected, the device can be configured in LARA or Event Manager.

Typical use cases include triggering room/AV actions such as "Show Me", "Mute/Unmute", "Device On/Off", or other custom automation sequences configured on the host device.

Features

Complete flexibility

One button for any custom action

Intuitive control

Stickers provide quick function identification

Colored feedback LED

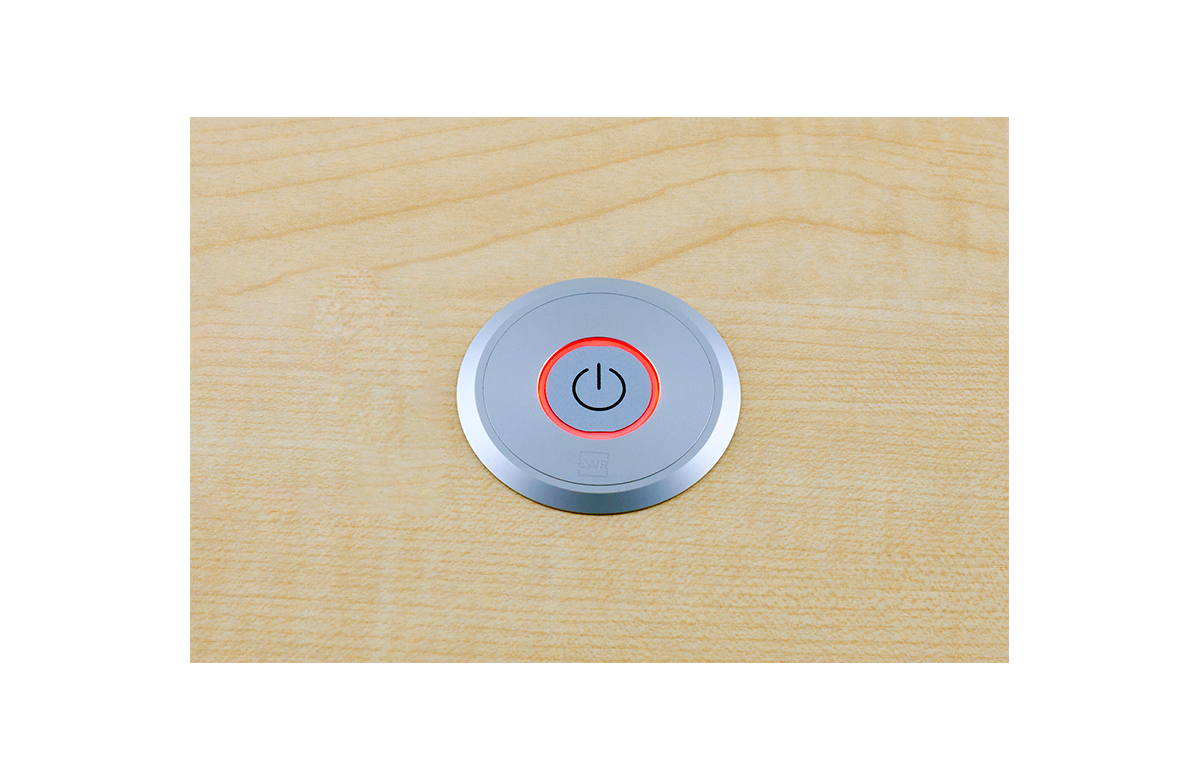

LED ring shows red, green, or blue for visual feedback

Multiple units

Supports up to 2 buttons on 6-GPIO devices

Optional Accessories

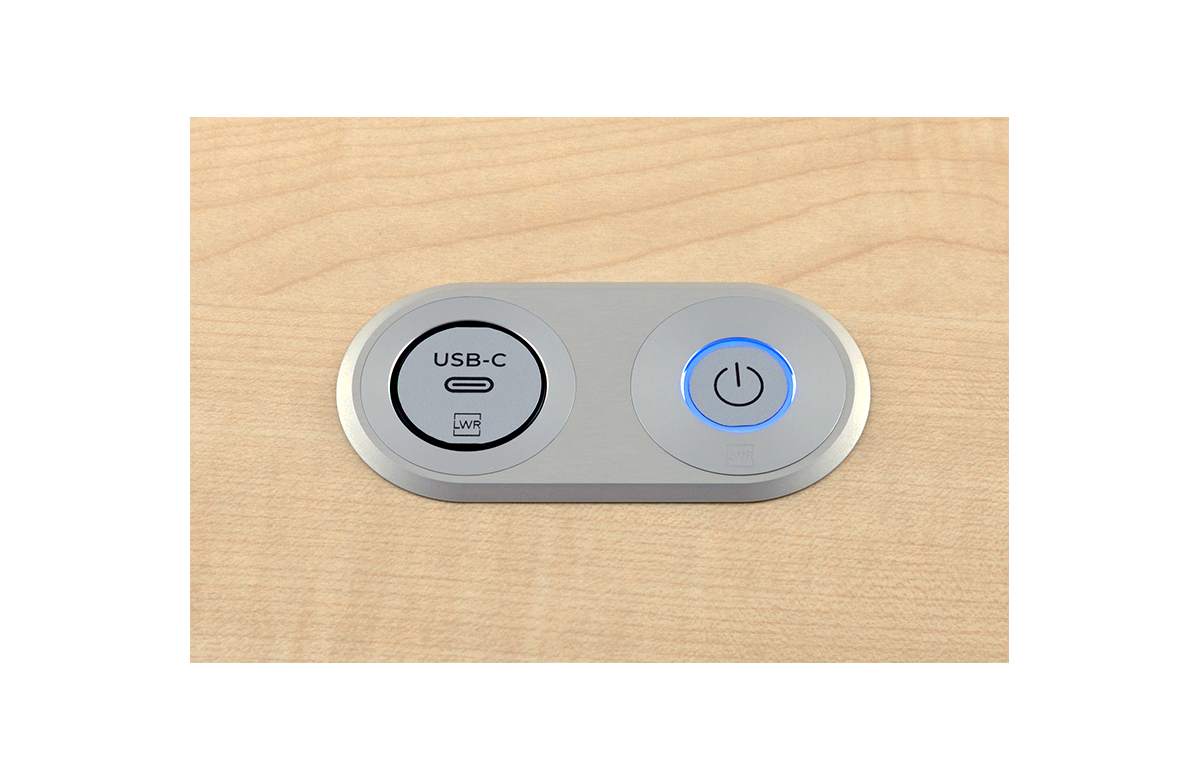

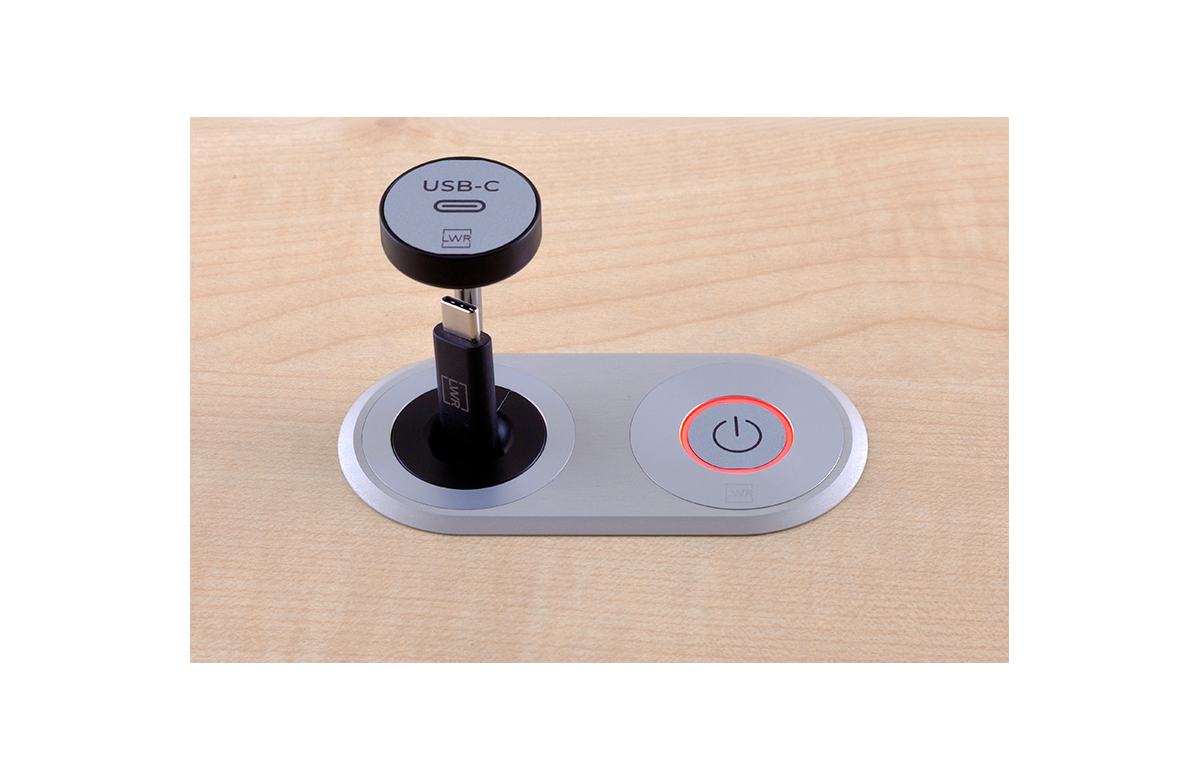

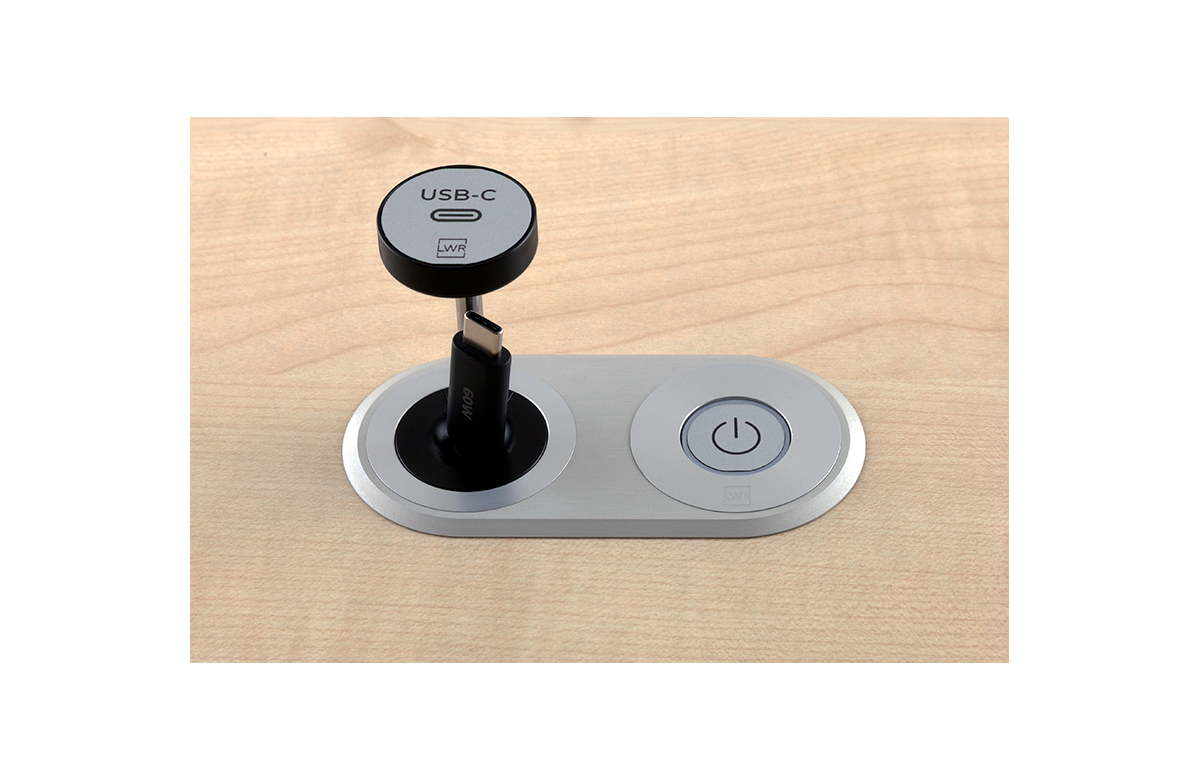

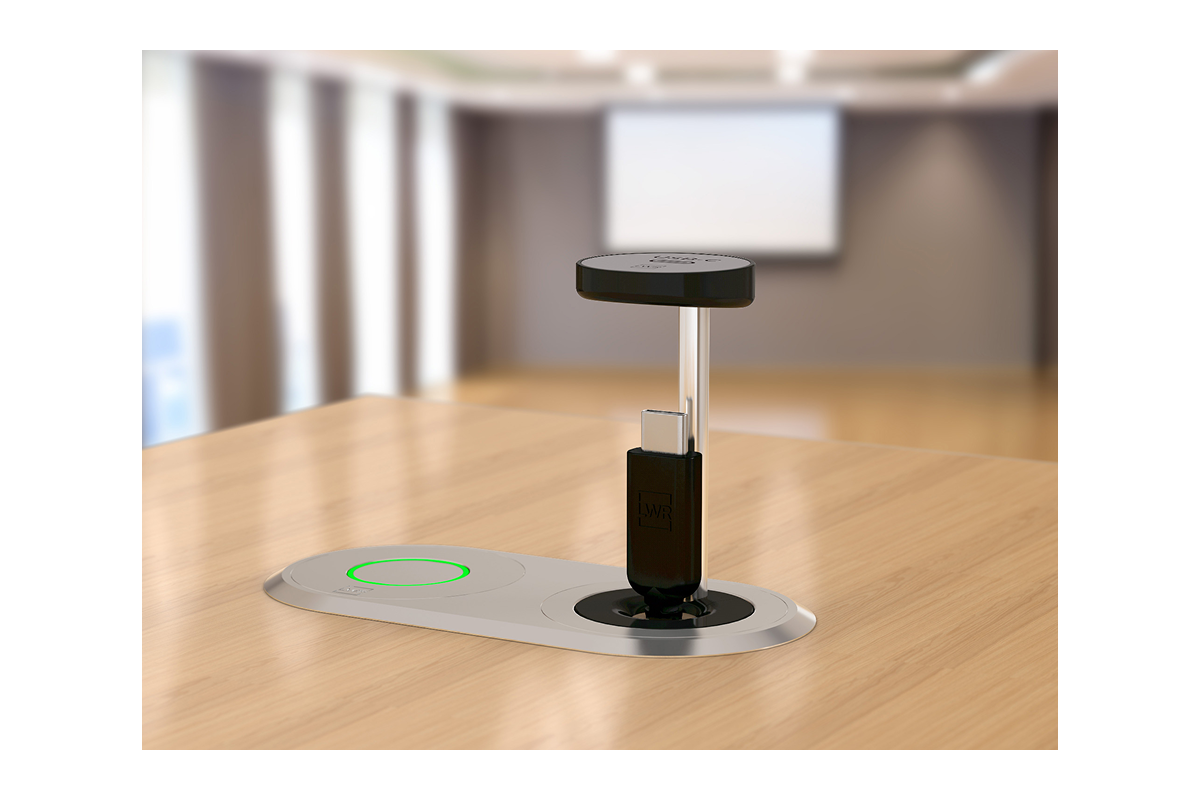

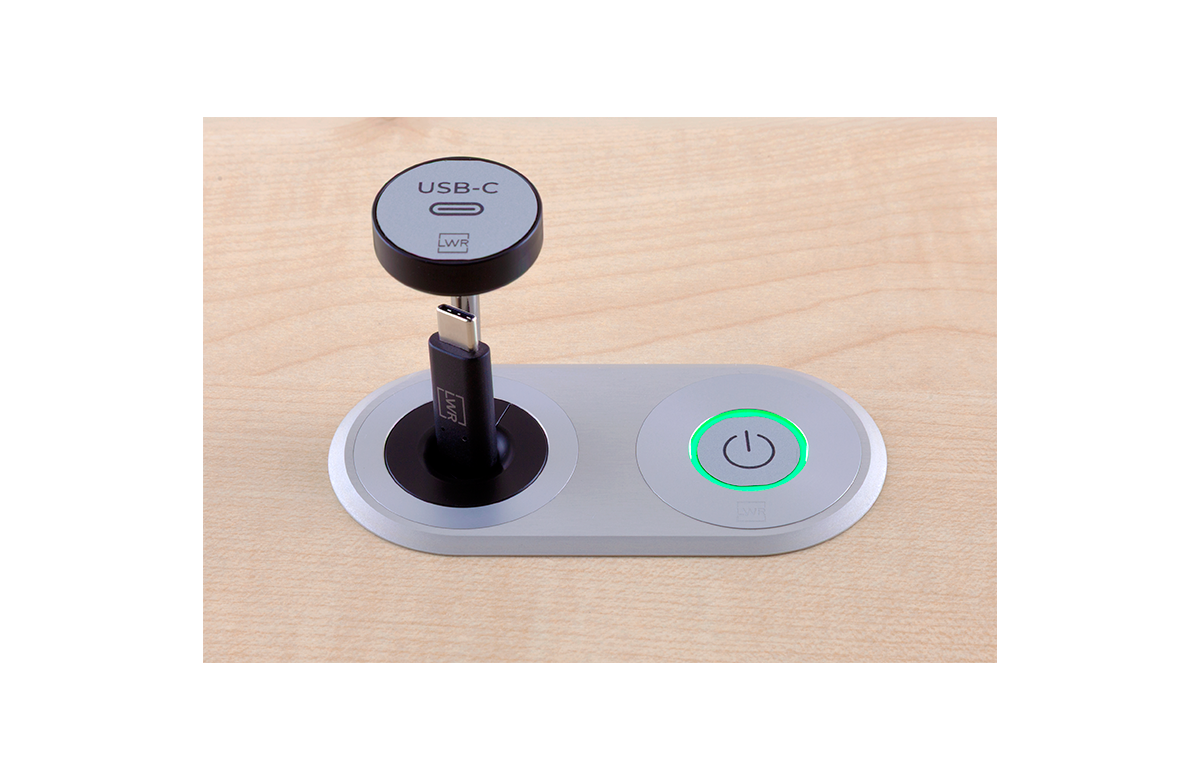

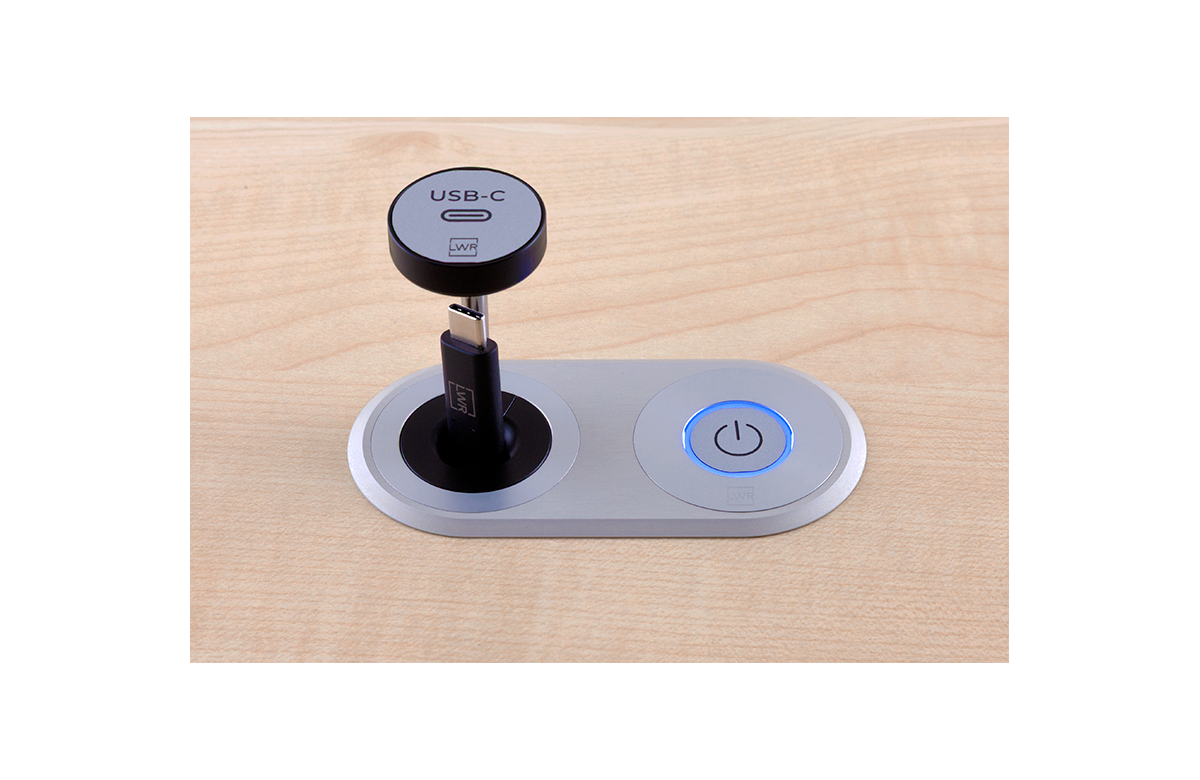

Double-Frame-S

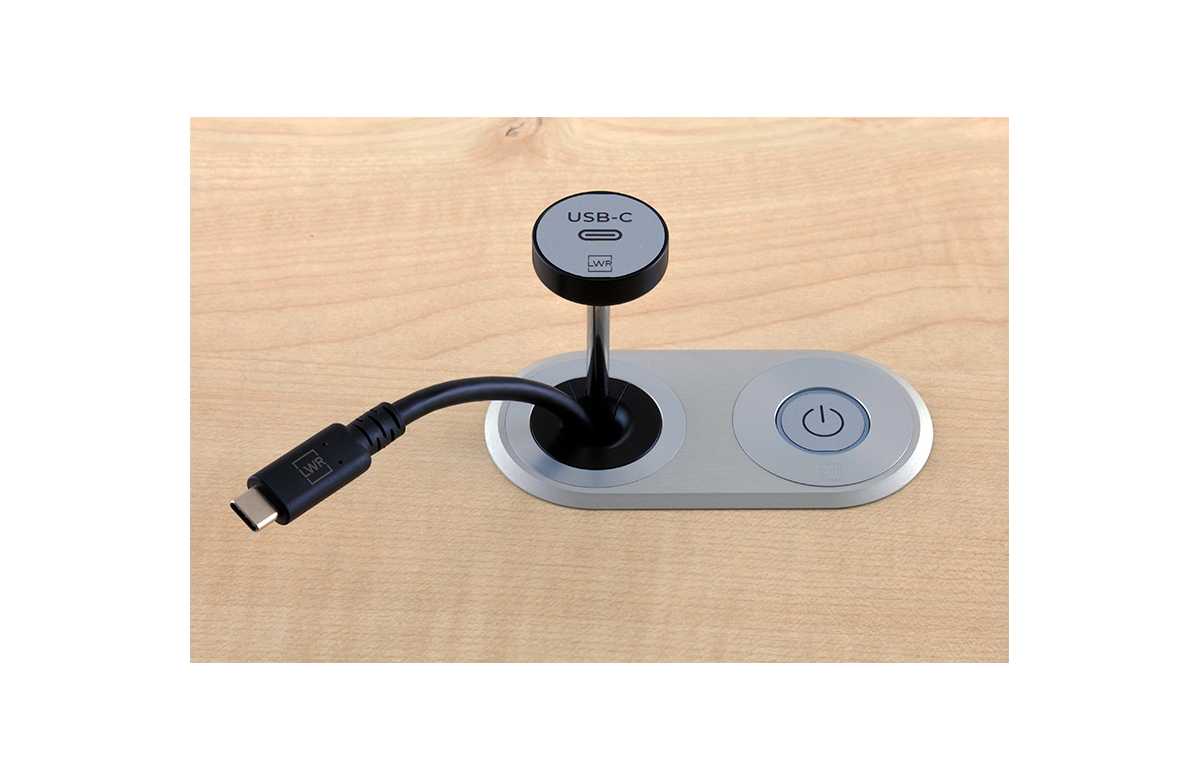

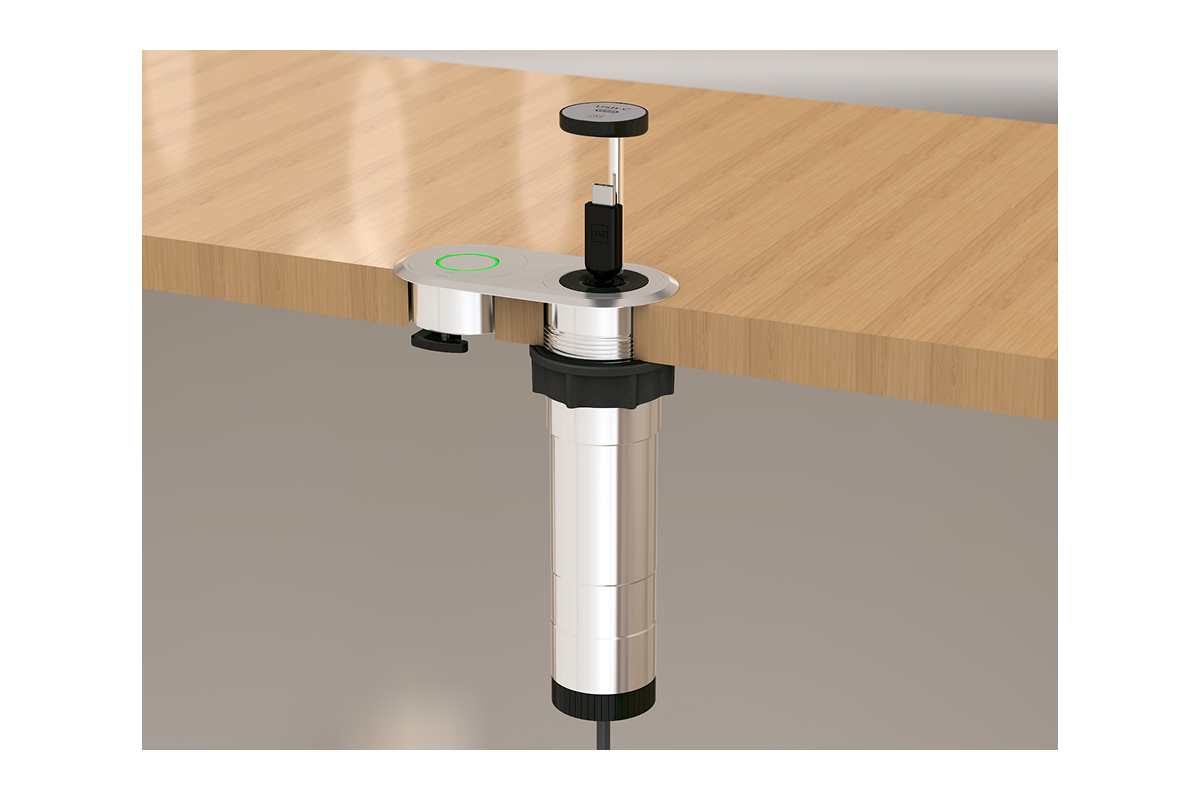

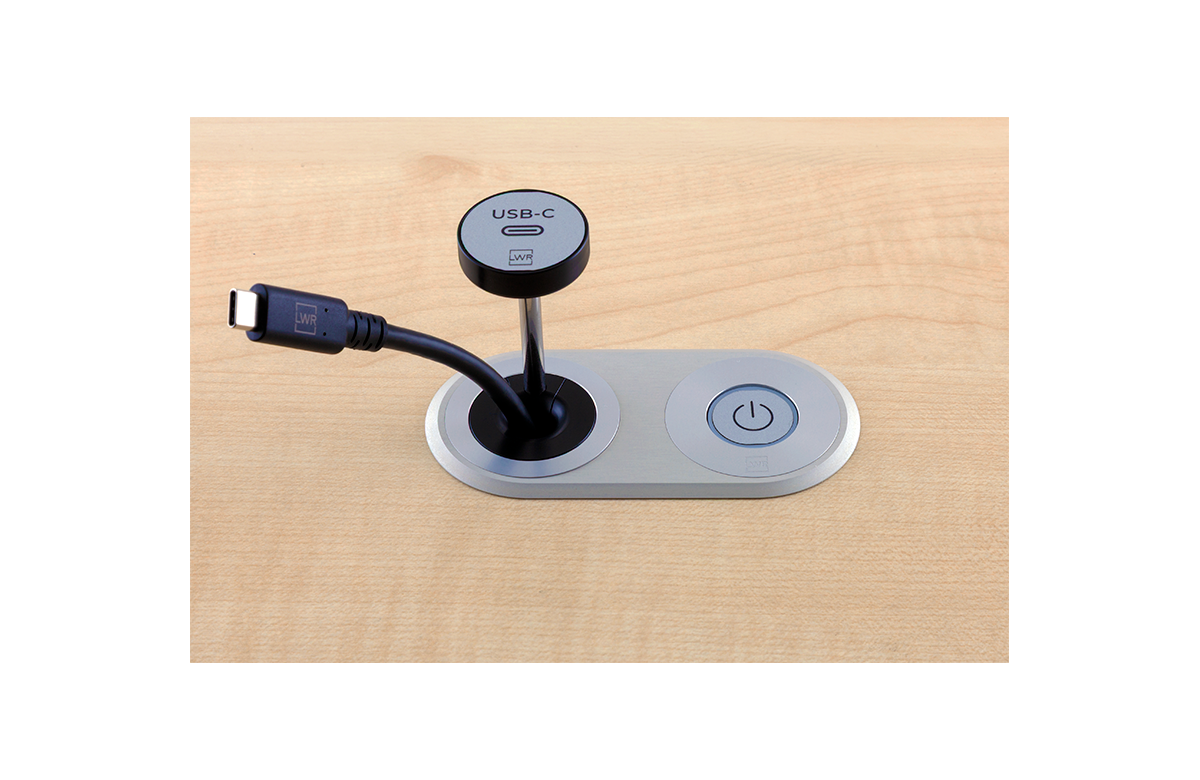

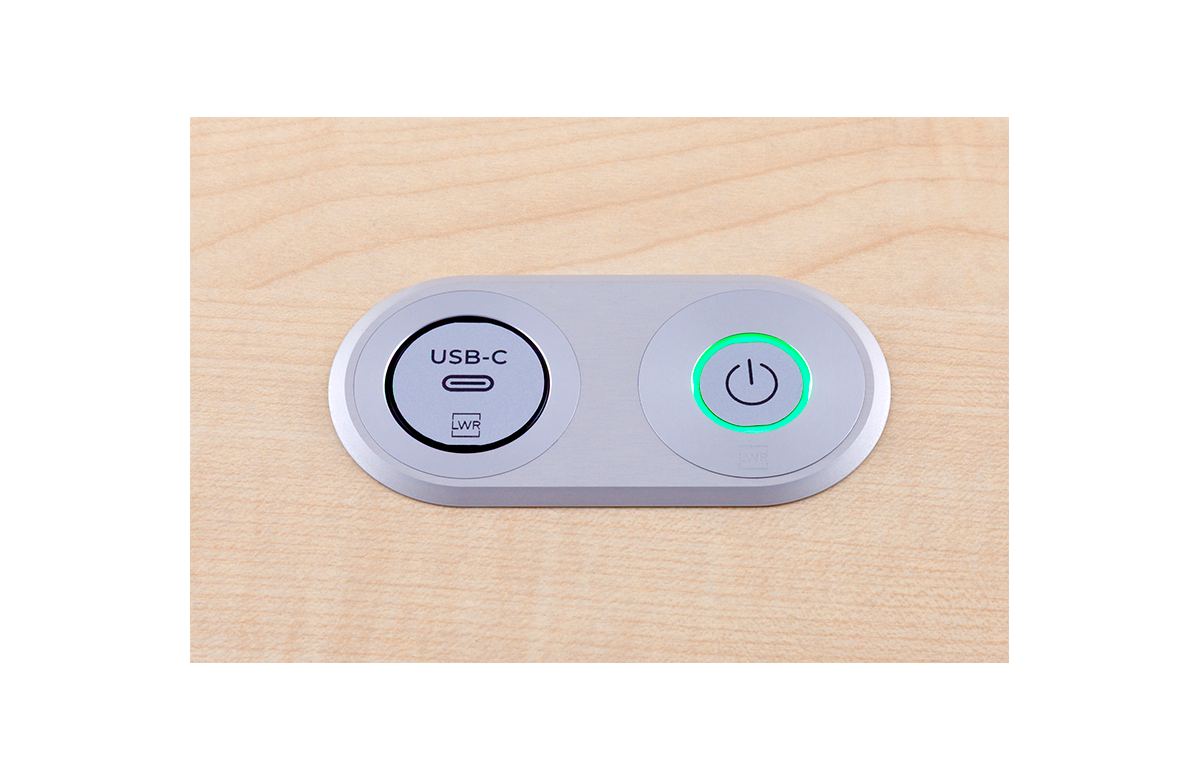

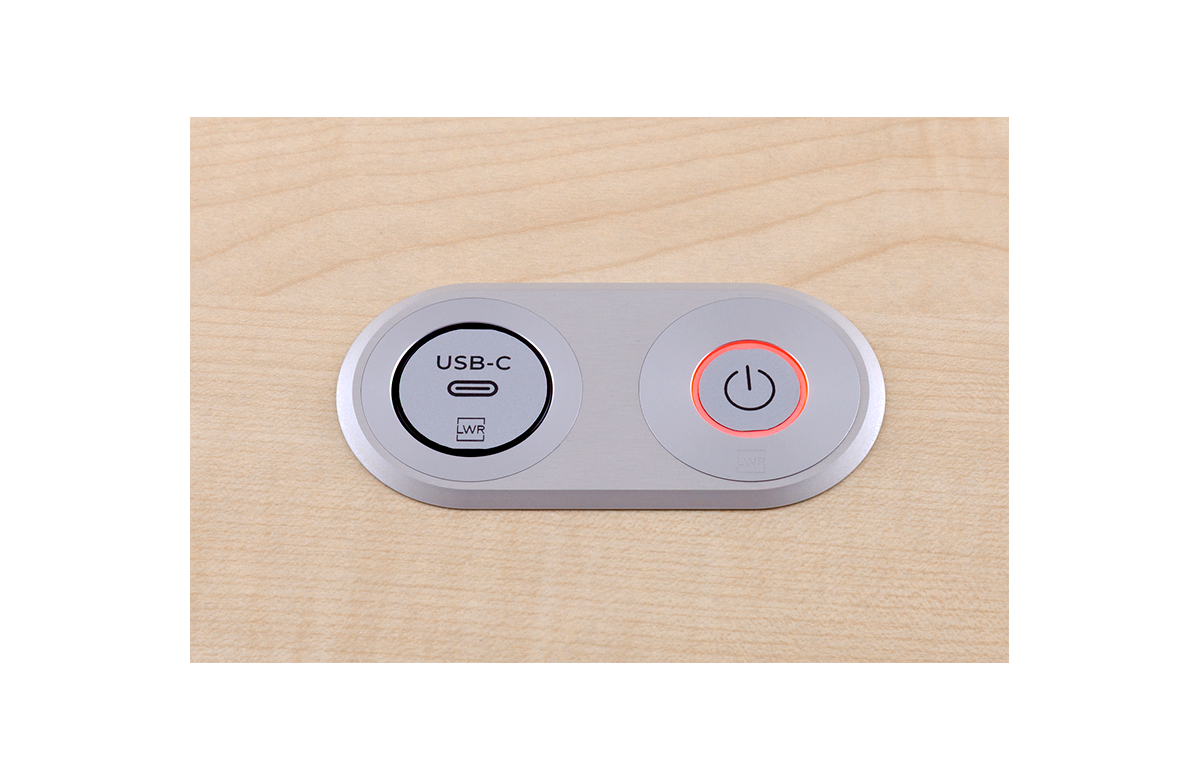

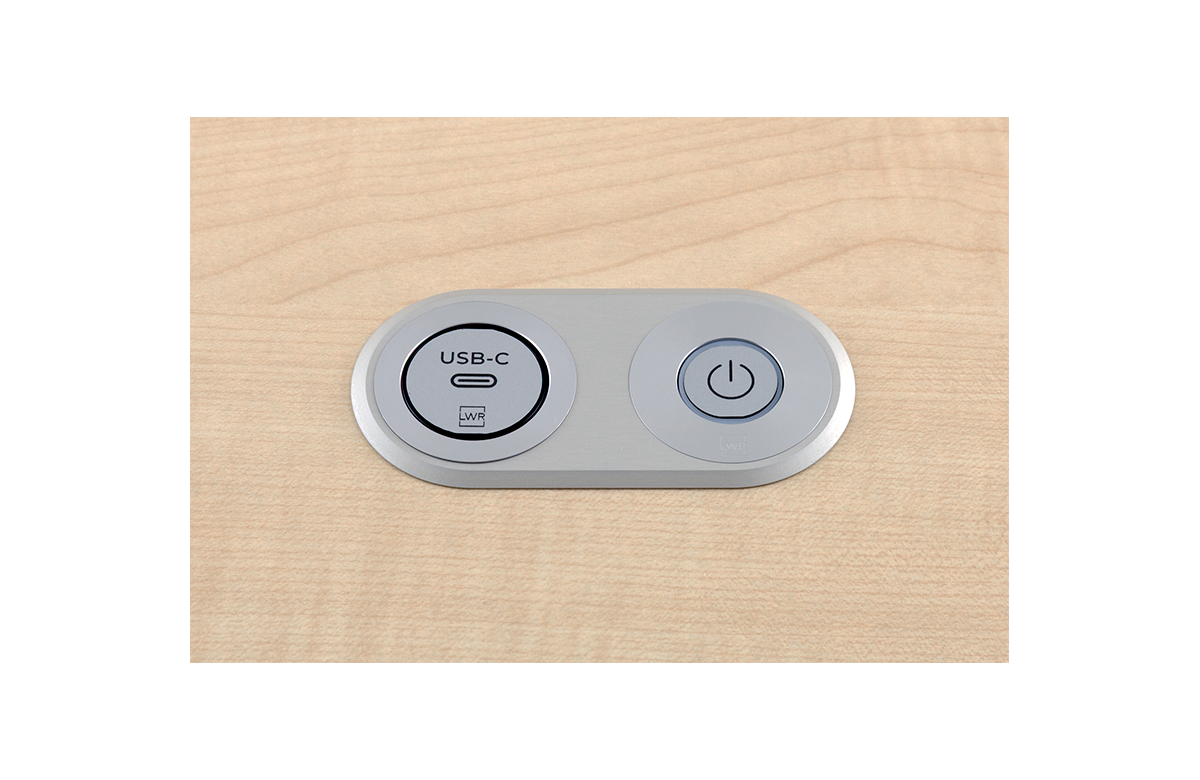

This premium double frame provides a clean, unified finish for dual 40mm desk cutouts. Compatible with both GPIO-Button-10S and C-PopUp-20RS units, it supports flexible configurations: 2× GPIO Buttons, 2× C-PopUps, or a mixed setup. Made from anodized aluminum, it ensures durability and a refined appearance, making it ideal for meeting rooms, boardrooms, and educational environments where a professional, integrated look is required.

Learn more
