TPS-PI-1P1
SKU: 91340010
ShippingSingle Port Standalone TPS Power Injector
Details
HDBaseTTM Power Injector
TPS-PI-1P1 is an IEEE802.3at compatible high end remote power injector device providing power to a remote TPS transmitter or receiver. The TPS-PI-1P1 is able to power a TPS extender placed in the TPS transmission chain, anywhere between the transmitter and the receiver unit. The incoming data stays untouched, the signal quality is unaffected but a 48V DC remote power is added to the signal by this device. This unit provides a uni-directional remote power only, but thanks to the 12V local output option the other device can be powered with the TPS-PI-1P1 if they are placed close to each other. Powering of the injector itself is provided by it’s own included power adapter. TPS-PI-1P1 has four front panel LED indicators for monitoring of the operation and troubleshooting: Power overload, 12V DC out active, Remote power out active and 48V DC in present.
Specification Table
| Specifications | |
| TPS+PoE power output: | Max. 30 W |
| Local power output: | Max. 30 W (2.5A@12V) |
| Power consumption | 4W typ., 8W max. |
| Enclosure: | 1 mm metal |
| Dimensions: | 100,4 W x 26 H x 67,6 D mm |
| Weight: | 224 g |
| Compliance: | CE |
| Warranty: | 3 years |

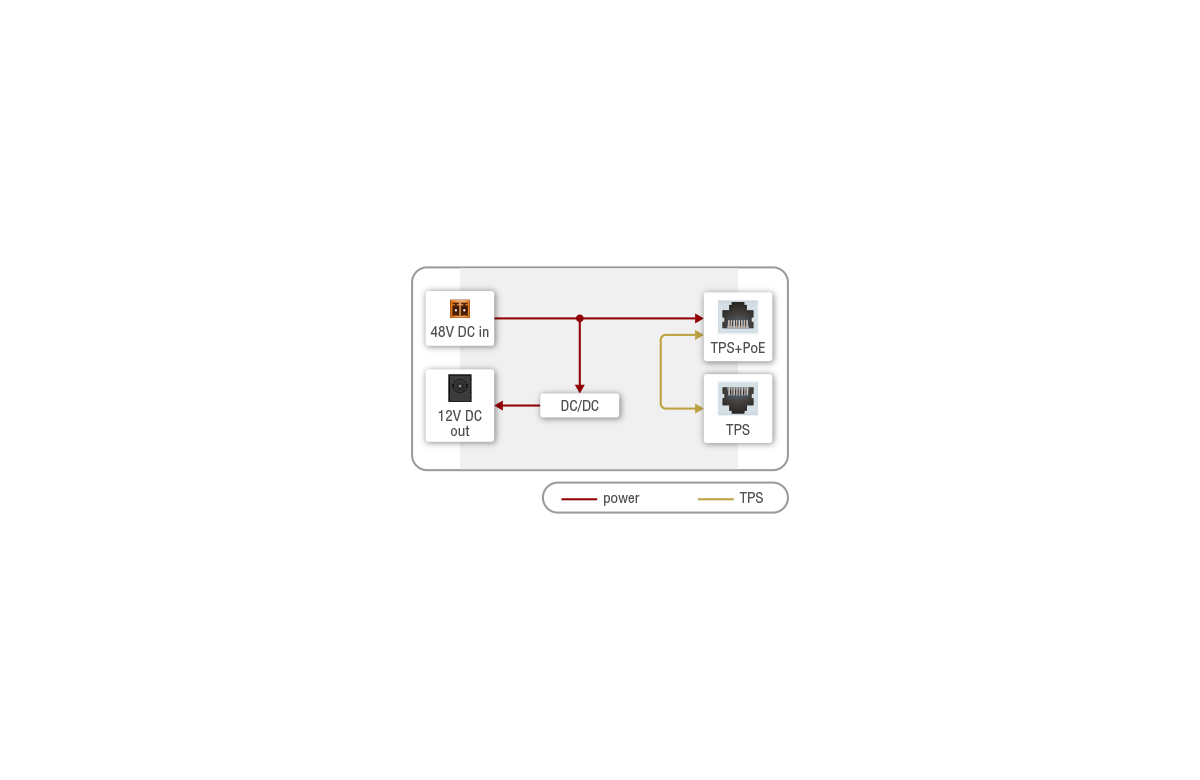

| Connectors | |
| TPS input: | RJ-45 |
| TPS+PoE output: | RJ-45 |
| 48V DC power input: | 2-pole 3.5mm PHOENIX |
| 12V DC power output: | Locking DC connector (2.1 / 5.5 mm) |
Features
Built-in PoE injector*
for remote powering extenders
HDBaseT compatible
Single port 48V remote power feed
to a TPS endpoint
Feeding up to 30W power
12V DC local power output
