GVN-HC-TX220AP
SKU: 91810039
Coming soon1G AV-over-IP Transmitter with USB-C Connectivity and 100W charging
Details
Specification Table
| Parameters | Specification |
| Video Inputs | HDMI 2.0 + USB-C (video, audio, data, Ethernet, Charging) |
| Local Video Output | HDMI 2.0 (up to 4K60 4:4:4) |
| AUDIO Input/output | LPCM stereo (analog) |
| Video Codec | JPEG2000 (visually lossless) |
| Latency (endpoint to endpoint) | ≈ 3 ms E2E at 4K60 |
| Network | 1 Gb Ethernet (CAT5e) or fiber |
| Connector | 2x RJ45 + SFP |
| USB | USB 2.0 + KVM support |
| Power | PoE (without 100W charging) or 24V / 160W PSU (included) |
| Security | HDCP 2.2 |
| Dimensions in mm | 221 W x 150 D x 26 H |
| Dimensions in inch | 8.7 W x 5.9 D x 1.02 H |
| Weight | 940 g / 2.08 lb |
| Certifications | CB, CE EMC, CE LVD, FCC |
Full-Featured USB‑C meets 1Gb AV-over-IP
The GVN-HC-TX220AP is the next-generation transmitter in Lightware’s Gemini GVN family that brings Full-Featured USB-C connectivity to 1G AV-over-IP deployments. The USB-C input accepts 4K60 4:4:4 video with audio while providing a fully transparent and independent USB data layer and optional 100W fast charging for BYOD hosts. In addition to USB-C, a second host computer can take advantage of a combination of HDMI 2.0 input plus data-only USB-C ports. Selection between the two local hosts can be eirher manual or automated based on signal presence or priority. USB device traffic is handled as true USB 2.0 over IP to allow HID devices and peripherals such as webcams and speakerphones to be extended and switched through the GVN system with behavior consistent with local USB connections. The GVN-HC-TX220AP features a local HDMI 2.0 loop-out for a mirrored local preview and offers a stereo analog audio port (selectable In or Out) for local audio connections.
Flexible and Scalable AV-over-IP Ecosystem

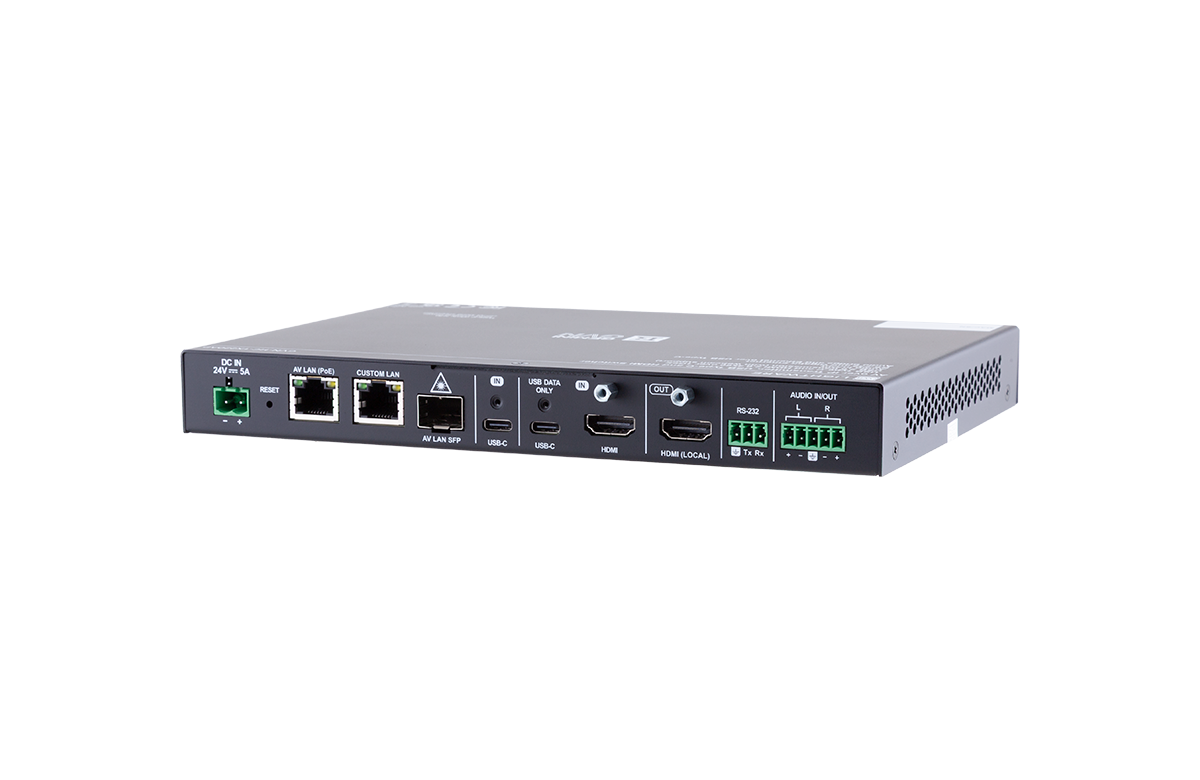

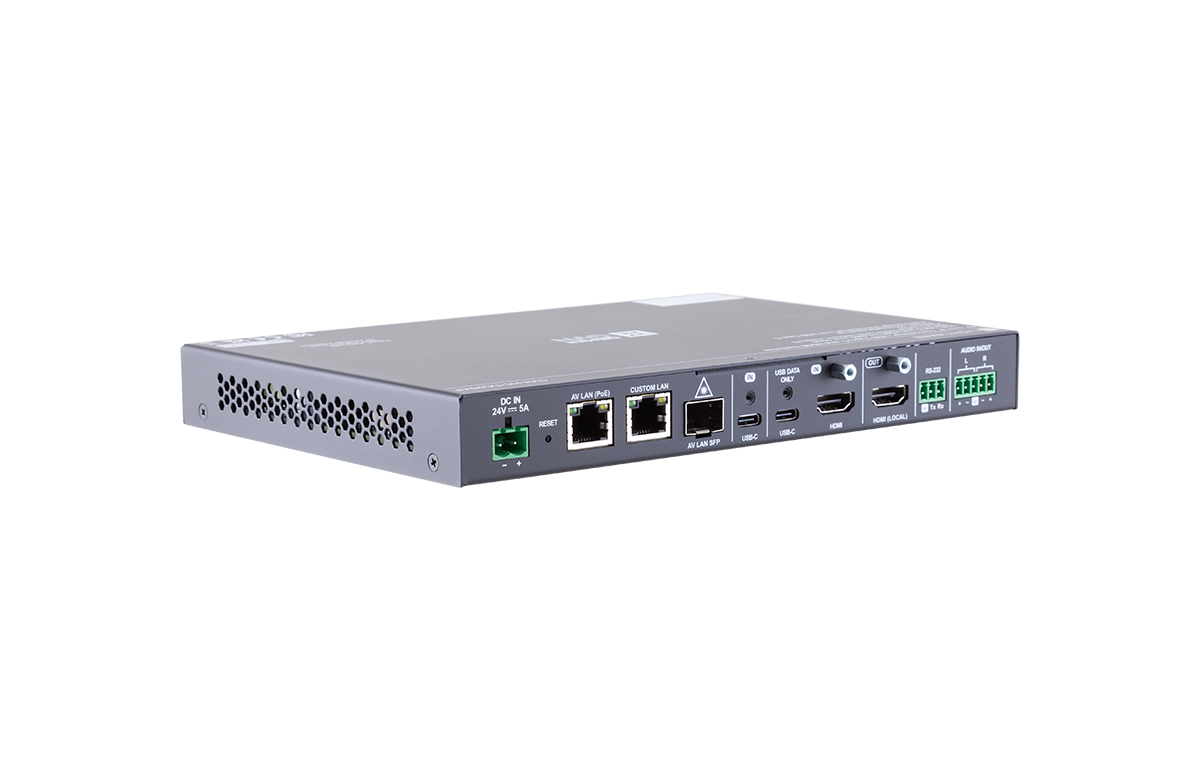

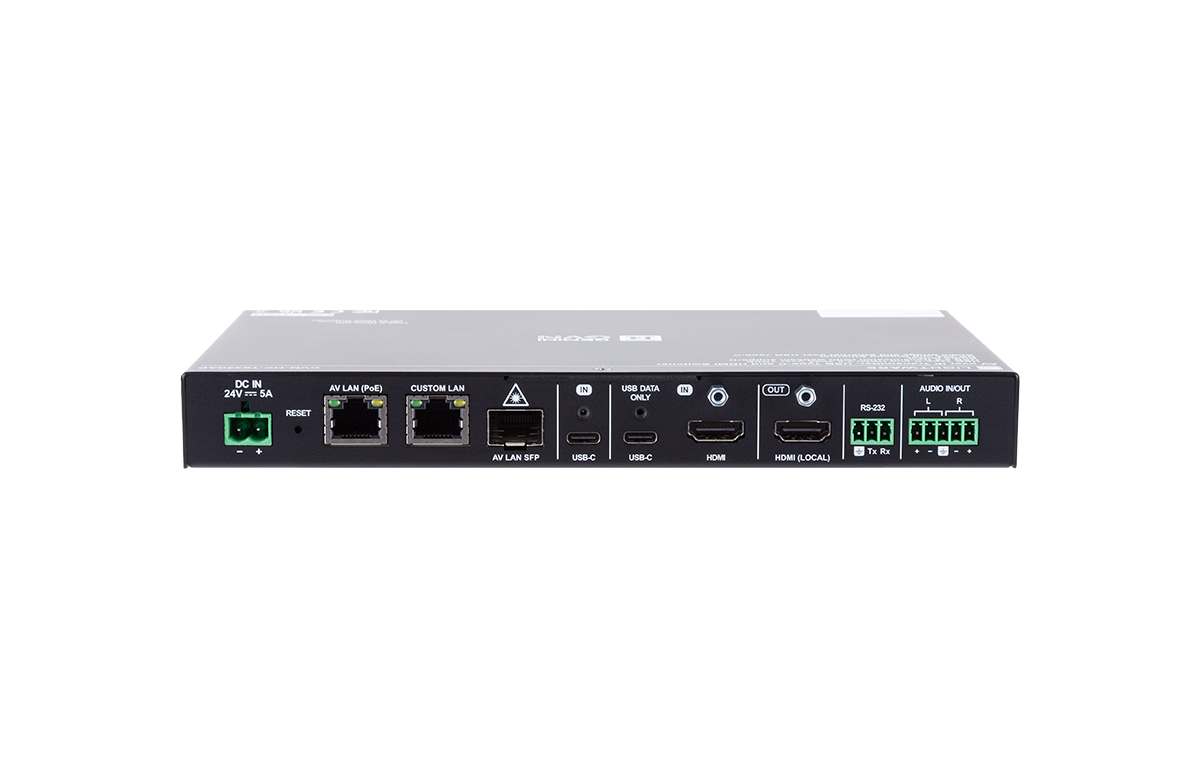

Gemini GVN is designed as a flexible AV-over-IP ecosystem that scales efficiently across large or asymmetrical AV deployments. As a member of this ecosystem, the HC-TX220AP offers best-in-class end-to-end latency and seamless switching between sources. In addition to video and USB peripheral data, the Full-Featured USB-C input can optionally provide Ethernet connectivity to the connected BYOD host, allowing hassle-free network access over the same single cable. The HC-TX220AP can be powered either via PoE from the network switch in simplified installations, or by the optional 160W external power supply when the 100W USB Power Delivery functionality is required. Network connectivity is provided over an SFP cage for fiber based systems or dual RJ45 ports for copper installations. One RJ45 port is dedicated to the Gemini GVN network, while the second RJ45 port is a custom LAN interface that can be used for user Ethernet-over-USB bridging or for a physically separated Dante network on the DNT variant.
Native USB audio device
The native USB audio interface eliminates the complexity typically associated with HDMI-based audio workflows by presenting the device directly to the host computer as a standard USB audio interface. This enables seamless bi-directional audio integration with streaming, broadcasting, conferencing, and professional production applications, where the device can be selected just like any other system audio source or destination. Because it is managed natively by the operating system, users benefit from straightforward configuration and control without additional software overhead. With driverless support across major platforms, deployment is fast, reliable, and ready for enterprise-scale environments.
Centralized Management with GVN Matrix Management Unit (MMU)
The HC-TX220AP transmitter integrates with the GVN MMU for auto-discovery, centralized configuration, Advanced EDID Management and system monitoring, simplifying both large-scale deployments and ongoing operation. By using the MMU as a single control point, external control systems do not need to establish direct connections to each individual endpoint. Full system control and configuration can be handled through the MMU, reducing integration complexity and control system overhead. Stream preview and additional signal analysis capabilities are available within the GVN firmware, accessible via Lightware Device Controller software or the built-in web interface.
Silently Reducing Energy Costs
Gemini GVN endpoints were designed with energy efficiency in mind. A typical self-consumption of around 10 watts significantly reduces both operating costs and environmental impact. This low-power design enables completely silent, fanless operation, improving reliability and making the devices suitable for noise-sensitive environments. In addition, the reduced power requirement lowers the overall PoE budget requirement of the system, allowing the use of more compact and cost-effective PoE-capable Ethernet switches even in larger deployments. With the packaging that is based on paper-derived materials, this focus on environmental footprint extends beyond operation.
Unleash Performance with Gemini GVN
High-Density Video Networking for Pro AV Systems
Discover the Gemini GVN product family, offering unparalleled video networking solutions with advanced scalability, robust reliability, and seamless 4K signal distribution. Perfect for large-scale, mission-critical AV environments.
Features
Full USB-C functionality
video, audio, data, Ethernet (100 Mbps), and 100 W charging
Dual input
+ HDCP 2.2
Auto-select
between video inputs
Low-frame latency (3 ms end-to-end)
USB 2.0
Transparent full USB device transmission
USB KVM
Composit USB HID device transmission
PoE PD
and external 24 V/160 W PSU
Offers RS-232 port
Other Features
Local HDMI 2.0 output
Analog audio support
Audio bridge over USB-C
User Ethernet (100 Mbps) over USB-C
Charging up to 100 W (with PSU)
CAT distance up to 100 m (328 ft)
SFP cage for fiber extension
optical module not included
External UL-certified 24 V/160 W power supply
Security: HDCP 2.2
Preview MJPEG stream
up to 1280×720
CE, CB, FCC certifications
Eco-friendly paper-based packaging
